Revolving Door and Tailor Made Air Curtains

Airtècnics ranges of Rotowind air curtains for revolving doors and Variwind air curtains of variable length are completely custom-made for each entrance. The Rotowind air curtains for revolving doors are designed to fit perfectly with the curvature of the revolving door, while Variwind air curtains are designed to fit the exact size desired by the customer.

Request Air Curtain

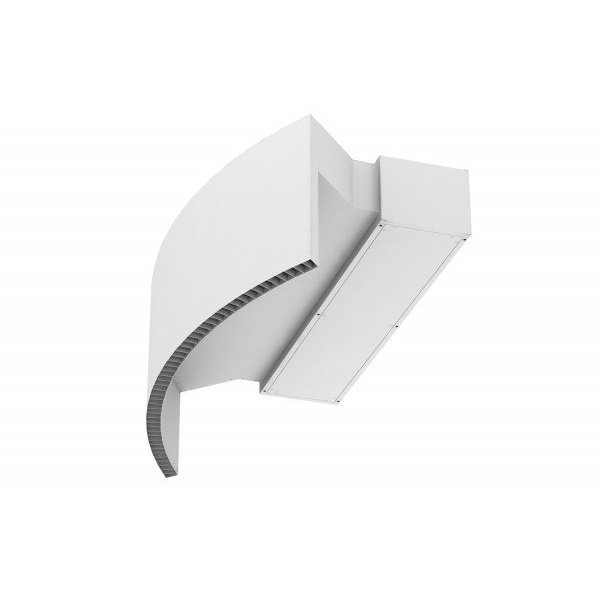

Rotowind Air Curtain

Rotowind air curtains for revolving doors are designed to fit perfectly with the curvature of the revolving door. Therefore it could be said that each air curtain is unique. They are mounted discreetly above the revolving door in two possible configurations and are usually painted with the same colour as the revolving door to combine with the internal or external aesthetics of the building. We also design air curtains for large revolving doors.

Features

Specially designed to be installed in all type of revolving doors. Two possible layouts, tailored dimensions.
Self-supporting casing construction made of galvanized steel plate finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request.
Large faceted inlet grille avoiding intensive maintenance.
Circular anodized aluminium outlet vanes, airfoil shaped.
Double-inlet centrifugal fans are driven by an external rotor motor and low noise level. 5-speed selector. EC models are assembled with very low consumption efficiency fans.
“P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.

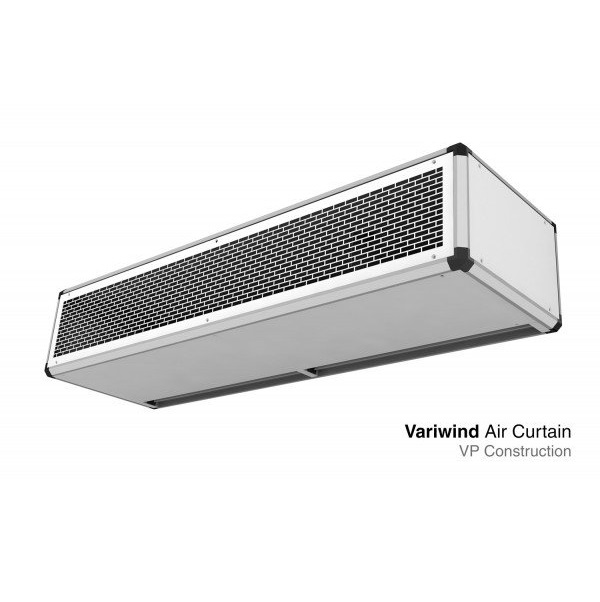

Variwind Custom-Made Air Curtain

Variwind air curtains are specially designed for doors with special needs in terms of size and limited space for installation. Made to measure, they cover all the customer’s needs and adapt perfectly to the conditions of each door, with a minimum size of one metre and a maximum of three metres.

Features

Option VW: Same construction as Windbox M-ECM-G-ECG. Self-supporting casing construction made of galvanized steel plate finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request. Micro-perforated inlet grille with filter functions and easy service. It does not need a prefilter.
Designed to be tailor-made, adaptable to any customer’s needs.

Anodized aluminium outlet vanes, airfoil-shaped, adjustable from 0 to 15º on each side.

Self-supporting casing construction made of galvanized steel plate finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request.
Large faceted inlet grille avoiding intensive maintenance.
